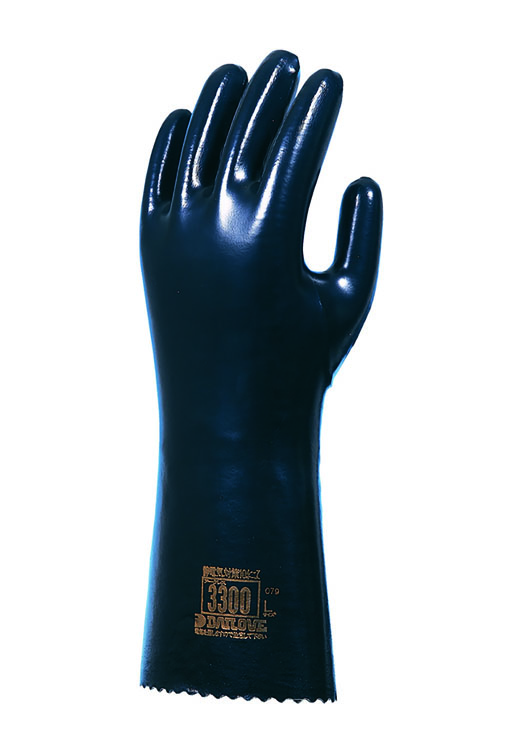

PRODUCTS DAILOVE 3300 |
33cm type of DAILOVE 3000．
○Gloves that combines ESD protection
○Electrical resistance value is103-107Ω
○Because the non-bleed， does not have to worry about repel the paint to touch the remains painted surface was wearing the gloves．
○There are solvent resistance．
＊In gloves single， static electricity measures impossible． Clothes， shoes， when you use the Static Control Products relates to a floor gloves effective match．
Because of the long overall length than DAILOVE 3000， the high level of safety in the solvent of the scattering and the like．
This glove is suitable for painting operations． Also combines solvent resistance．
Using a special urethane rubber which gave conductivity． Possible countermeasure against static electricity．
By missing on the ground through a glove， removing the static electricity accumulated in the contact material．
Example of use
○Due to the effects of static electricity， it prevents the solvent would have been repelled by the components of the gloves．
○Wiping of dirt， such as printing equipment．
○Shatterproof when handling solvents．
○Shatterproof of the solvent in the coating industry．
○Handling of what hate the generation of static electricity， such as a semiconductor．
○Tasks that you need to immerse the hand in a solvent parts washing or the like．
Static electricity
Printing
Precision machinery
Machine
Shatter-proof
Oil
Dipping
information
-
Ambient temperature
Normal temperature
-
Material
Polyurethane
-
Primary use
Machine parts cleaning
Work in the solvent
Shatterproof solvent
Safety measure
Protection of the object
Immersed in disinfectant -
Category classification
Electro-static Discharge and Solvent
-
Material
Surface：Polyurethane
lining：Cotton100%＋Conduction -
type
-
-
size
Ｌ：330㎜
Lw：330㎜ -
The thickness
1．05㎜
-
Caliber
-
-
Surface shape
-
-
color
-
Price / double
black
-
Packaging
¥3，700

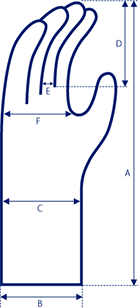

Product dimension
| size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| Ｌ | 330 | 153 | 118 | 78 | 39 | 114 |
| Lw | 330 | 160 | 123 | 79 | 39 | 118 |
■F shows around the palm of the hand．
■E the thickness of the fingers． Near the center of the finger．
■B， C， E， the dimensions of the F numerical was flattened to the site．
■may vary with the above dimensions for improvement．
■Unit (mm) Display
support
Related information
Notes on use
■Only gloves there is no effect of the ground wire. It requires comprehensive static measures, including clothes, shoes, floor and the like. Not used in a state where the glove is insulated.
■Via the thumb portion inside the conductive fiber, which is energized to the surface. Always used in a state in which the thumb is in contact with the conductive fiber.
■Handled substance and (oil, solvents, paints, etc.) is attached to the gloves, the electrical resistance value will vary. The oil and solvents may not energized to leave soaked in gloves. To verify that the electrical resistance during use and prior to use is within the specified range.
■If the gloves are not energized contaminated with oil or solvents are not used.
■If it is swollen with an organic solvent or the like, since the general resistance value tends to fluctuate attention.
■Because of the risk of ignition, do not close the gloves on fire after handling flammable substances.
■Because of the risk of electric shock, do not use the electrical work.
■Our test data is at room temperature, test data in a single solvent. By the environment and the work that you want to use, performance will vary.
■Solvents and chemicals that can be dealt with by product is different. SDS of solvents and chemicals used the (safety data sheet) to check the ingredients. To confirm whether or not to use in the service agent area swelling capacity table.
■Not be used for acids and alkalis.
■Transmission at gas shape can not be prevented. Applying a protective cream. Gloves for the transparent protection (DAILOVET2-D, T2-F, 730) should be worn. To provide protection of the hand from the permeate.
■After using the oil or solvent may gas evaporated from the glove when left in a room is filled. Store from dried.
■After use to shade to wash the dirt and liquid. A long period of time, deterioration is accelerated and allowed to stand in the sun. By thoroughly dried, store in well-ventilated place to avoid direct sunlight.
