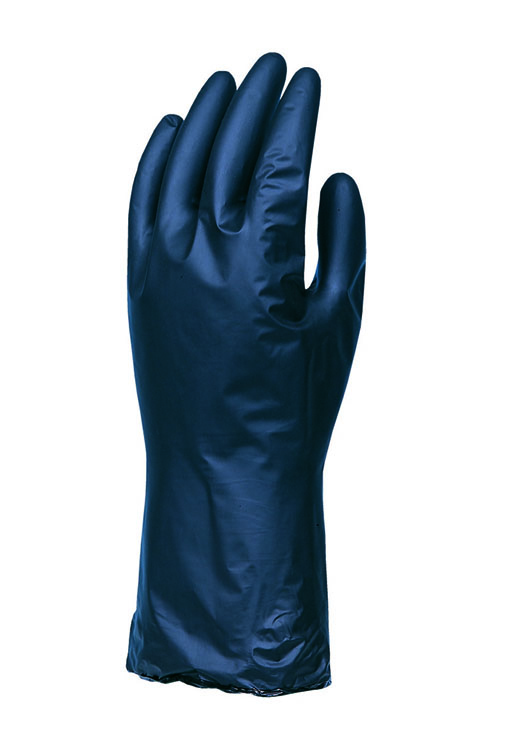

PRODUCTS DAILOVE H4 |
ESD protection gloves that specializes in workability．
○Gloves that combines ESD protection
○Electrical resistance value is103-106Ω
○Powder－free
○There are solvent resistance．
＊In gloves single， static electricity measures impossible． Clothes， shoes， when you use the Static Control Products relates to a floor gloves effective match．
Using a special urethane rubber which gave conductivity． Possible countermeasure against static electricity．
By missing on the ground through a glove， removing the static electricity accumulated in the contact material．
Example of use
○Work and dealing with a flammable solvent， Suitable for use in the field you are affected by the static electricity．
○Wiping of dirt， such as printing equipment．
○Shatterproof when handling solvents．
○Shatterproof of the solvent in the coating industry．
○Handling of products that hate the generation of static electricity， such as a semiconductor．
Static electricity
Printing
Precision machinery
Machine
Shatter-proof
Oil
information
-
Ambient temperature
Normal temperature
-
Material
Polyurethane
-
Primary use
Machine parts cleaning
Shatterproof solvent
Clean room -
Category classification
Electro-static Discharge and Solvent
-
Material
Surface：Polyurethane
lining：None -
type
-
-
size
Ｓ：300㎜
M：300㎜
L：300㎜
XL：300㎜ -
The thickness
0．1㎜
-
Caliber
-
-
Surface shape
-
-
color
black
-
Price / double
¥800
-
Packaging
bag：5Phase
Outer case100Phase

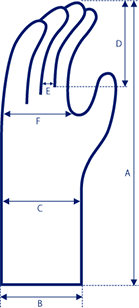

Product dimension
| size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| S | 300 | 135 | 111 | 70 | 30 | 97 |
| M | 300 | 137 | 115 | 75 | 36 | 113 |
| L | 300 | 150 | 124 | 79 | 36 | 121 |
| LL | 300 | 152 | 127 | 92 | 41 | 129 |
■F shows around the palm of the hand．
■E the thickness of the fingers． Near the center of the finger．
■B， C， E， the dimensions of the F numerical was flattened to the site．
■may vary with the above dimensions for improvement．
■Unit (mm) Display
support
Related information
Notes on use
■Only gloves there is no effect of the ground wire. It requires comprehensive static measures, including clothes, shoes, floor and the like. Not used in a state where the glove is insulated.
■Handled substance and (oil, solvents, paints, etc.) is attached to the gloves, the electrical resistance value will vary. The oil and solvents may not energized to leave soaked in gloves. To verify that the electrical resistance during use and prior to use is within the specified range.
■If the gloves are not energized contaminated with oil or solvents are not used.
■Because the film is thin, sufficiently attention to sharp objects.
■If it is swollen with an organic solvent or the like, since the general resistance value tends to fluctuate attention.
■Because of the risk of ignition, do not close the gloves on fire after handling flammable substances.
■Because of the risk of electric shock, do not use the electrical work.
